use

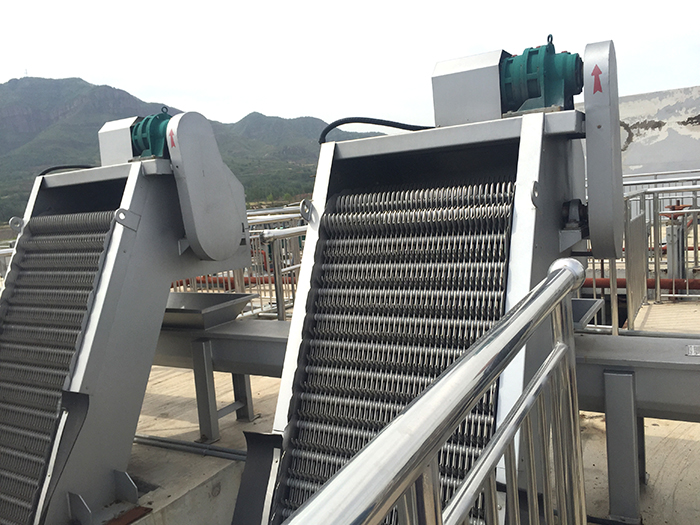

Rotary grille decontamination machine is a kind of solid-liquid separation in water treatment equipment, mainly used for urban sewage treatment plants, sewage pretreatment device, municipal sewage pumping station, the rain water plant and power plant cooling water intake, the equipment is also widely used in textile, printing and dyeing, food, aquatic products, paper making, slaughtering, leather and other industries of water treatment engineering,It is a solid-liquid separation equipment in the water treatment industry.
Structure and working principle
The equipment adopts rotary, created by a special shape of plow rake teeth in a certain number of assembly sequence is arranged on the horizontal axis, rake tooth chain, according to the water flow, assembly into different clearance, installed at the entrance of the pump station or a water treatment system, when the driver to drive tine chain moves from bottom to top and the impurities in the water was tine chain fished, liquid flows in grid gap,After the equipment rotates to the upper vertex, the rake chain changes the running direction and moves from top to bottom. The material falls off from the rake tooth by itself depending on its own weight. When the rake tooth turns from the reverse side to the bottom, it starts another cycle of continuous operation, so as to continuously remove debris from the water and achieve the purpose of solid-liquid separation.
