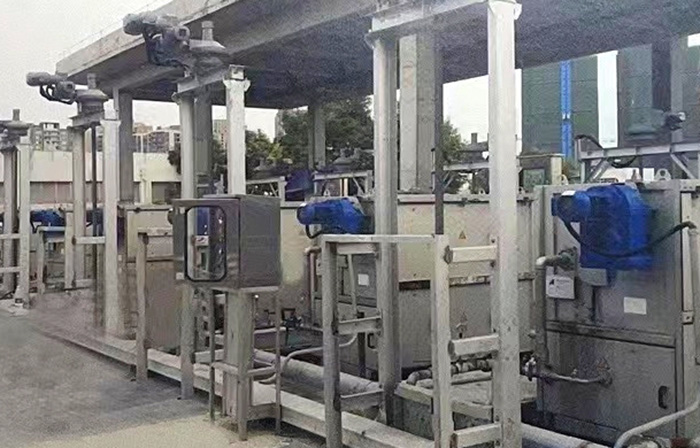

Internal inflow mesh thin grille
The internal inflow grid is a new type of fine grid cleaning equipment, which uses continuous interception and removal of solid debris in the fluid, and can achieve good cleaning effect. Such as flat solid, weeds, melon shells, etc., especially the traditional fine grid is difficult to intercept the hair fiber dirt, can greatly reduce the load of the subsequent processing process.
Structure and working principle
Sewage from the vertical hole plate fine grid cleaner side into the middle, from inside to outside through the two sides of the hole grid plate discharge, intercept in the internal grid slag with the hole grid plate rotation to lift the top part of the slag discharge area, in the grid slag flushing system is washed off into the internal slag collection tank, and then through the conveying device into the next equipment, At the same time, the mesh is washed clean and goes to the next cycle.
The internal flow screen grid is mainly composed of main frame, rotating screen and chain, drive unit, slag trough, backwash system and control system.
