use

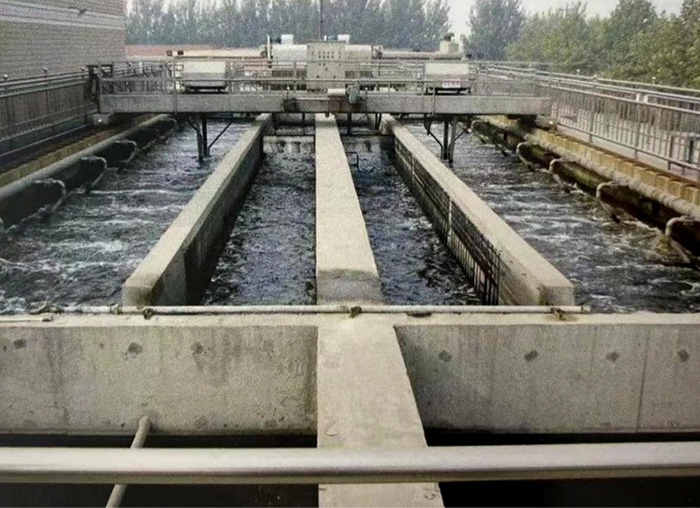

Bridge type sand suction machine is mainly used for the sand water treatment of urban sewage treatment plant or tap water aerated sand sink tank, the sand at the bottom of the sand, coal slag and other large particles and sewage mixture to the pool next to the sand tank: according to user requirements, can add oil skimming, skimming device.
Structure and working principle
The equipment adopts mobile bridge type, pump suction type, when the sand suction machine does not work, that is, stop at the water inlet end; When the sand suction machine is working, driving under the instruction of electrical control, when running along the current, first put down the skimming plate, scraping scum and skimming to the steel skimming tank at the end of the pool; Reverse driving, skimming rake lifting, leaving the liquid level to prevent scum retrograde: the bottom of the pool by suction sand pump through the suction pipe will be discharged into the pool side collection tank, and then through the pipeline into the sand and water separator, for the next step, according to the back and forth work movement, so as to achieve the purpose of sand suction, sand discharge, skimming.
