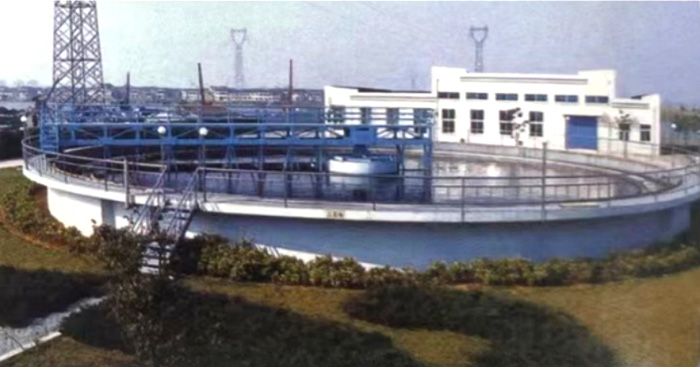

Peripheral drive scraper suction mud machine
use
The peripheral drive scraper and suction mud machine is suitable for the large, medium and small size radial flow sedimentation tank of the central inlet and the surrounding outlet center mud discharge. It is mainly used for the suction and discharge of mud in the urban sewage treatment plant or sedimentation tank.
Structure and working principle
The equipment adopts peripheral transmission, sewage from the center of the pool into the water inlet pipe, after diffusion through the flow stabilizer cylinder, evenly radiate out to the surrounding, suspension sludge by precipitation deposited at the bottom of the pool, the driving device drives the working bridge along the periphery rotation, and drives the suction pipe system and mud collection scraper rotation, The sludge is scraped and collected by the scraper and pumped into the sludge collection tank by the mud suction pipe relying on the hydrostatic pressure in the pool, and then discharged into the central mud tank through the central mud discharge pipe, and the scum on the water surface is imported into the sludge bucket and discharged out of the pool through the rotating skimming device, while the supernatant is discharged into the tank through the triangular weir plate.
The peripheral drive scraper and suction mud machine is suitable for the large, medium and small size radial flow sedimentation tank of the central inlet and the surrounding outlet center mud discharge. It is mainly used for the suction and discharge of mud in the urban sewage treatment plant or sedimentation tank.
Structure and working principle
The equipment adopts peripheral transmission, sewage from the center of the pool into the water inlet pipe, after diffusion through the flow stabilizer cylinder, evenly radiate out to the surrounding, suspension sludge by precipitation deposited at the bottom of the pool, the driving device drives the working bridge along the periphery rotation, and drives the suction pipe system and mud collection scraper rotation, The sludge is scraped and collected by the scraper and pumped into the sludge collection tank by the mud suction pipe relying on the hydrostatic pressure in the pool, and then discharged into the central mud tank through the central mud discharge pipe, and the scum on the water surface is imported into the sludge bucket and discharged out of the pool through the rotating skimming device, while the supernatant is discharged into the tank through the triangular weir plate.
